- Place of Origin: Guangdong, China (Mainland)
- Brand Name: jiayin
- Model Number: MCW-10

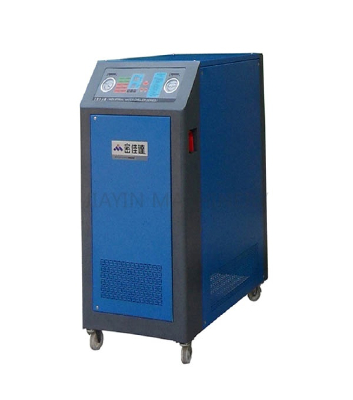

Water-cooled Industrial water Chiller
Company Website:www.mijiada.com
Features:
1.Designed with imported compressor and water pump for ultra-powerful refrigeration,with
prolonged service life;
2.High-efficiency evaporator and condenser realizing rapid thermal transfer;
3.Open-type stainless steel water tank,easy and fast to clean and maintain;
4.Double-compressor design to save energy and power;
5.Well-structured safety protection and trouble indication system;
6.Microcomputer touch-type control,accurate temperature control and simple operation.
Safety protection system:
1.No tatal power circuit breaker
2.Compressor overload protection
3.Circulating pump overload protection
4.Anti-phase and open phase protection
5.High&Low pressure protection for refrigerant
6.Freezing protection
7.Trouble indicator and abnormality buzzer alarm
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: jiayin
- Model Number: MCW-10
Specifications :
Model | MCW-5 | MCW-10 | MCW-15 | MCW-20 | MCW-25 | MCW-30 | MCW-40 | |
Refrigerating Capacity | KW | 15 | 29.7 | 44.1 | 58.6 | 69 | 69 | 117.2 |
Kcal/h | 12900 | 26230 | 38700 | 52460 | 59340 | 79120 | 104920 | |
Input power | 3 phase 380v 50hz | |||||||
Compressor | Type | All-closed vorticity/all-closed piston/semi-closed/screw | ||||||
Input Power | 5HPx1 | 5HPx2 | 5HPx3 | 10HPx2 | 12.5HPx2 | 15HPx2 | 12.5HPx3 | |
Quantity of compressor | 1 | 2 | 3 | 2 | 2 | 2 | 3 | |
Built-in freeze water pump | Power(KW) | 0.75 | 1.5 | 1.5 | 2.25 | 2.25 | 2.25 | 3.75 |
Condenser | Type | shell and coil condenser | ||||||
Fan Type | 1 | 1.5 | 1.5 | 2 | 2 | 2 | 3 | |
Evaporator | Type | Stainless steel water tank plate copper tube | ||||||
Dia of outlet and inlet(inch) | 4x(1/2) | 1.5 | 1.5 | 2 | 2 | 2 | 3 | |
Water tank capacity(L) | 50 | 120 | 180 | 250 | 300 | 350 | 450 | |
Refrierant | Type | R-22 | ||||||
Flow control | Caloric power expansion Valve | |||||||
Magnetic valve | Italy castol | |||||||
Filter | America “ALCO” | |||||||
Electric material | Taiwa taian technology | |||||||
Controler | Microcomputer digital display control.Degree of precision ±°C | |||||||
Temperature range | 3°C----40°C | |||||||
Protective device | High/low pressure protective switc,phase failure protection,overload protective switch,antifreeze switch,time delay protection,over-temperature protection,over-current protection. | |||||||
Dimension | (CM) | 98x50x85 | 162x60x136 | 172x70x136 | 206x85x138 | 220x85x138 | 230x90x138 | 245x93x145 |
